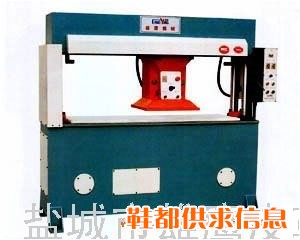

XYJ-1/25、30型精密四柱液压龙门下料机

用途与特点 本机主要适用于成型刀模对单层或多层的皮革、橡胶、塑料、吸塑、纺织品、化纤等材料冲裁下料。 1、操作省力、简单、故障率低、裁断力强、裁断速度快。 2、双油缸、精密四柱自动平衡连杆结构，保证每一个裁断位置裁断深度完全相同。 3、裁断板下压接触裁刀时自动慢切，使裁断料最上层与最下层没有尺寸误差。 4、双手操作，安全性高。 The machine is mainly suitable for cutting one layer or layer of leather,rubber,plastic,plastics packing ,textile and chemical fibre etc.with molding cutter.1、The operation is labor-saving and simple,with low malfunction,strong cutting power and high cutting speed.2、Double oil cylinder and precise four-column automatic balance connecting rod structure,which can guarantee the absolutely same cutting depth of each cutting position.3、When pressing the cutting board and touching the cutter,it can cut automatically and slowly to make that no size error between the uppermost layer and lowermost layer of the cutting material. 4、Operation with two hands makes high safety. 技术参数 最大裁断力 Maximum cutting force 250KN、300KN 冲程调节范围 Stroke adjustment range 0～130mm 裁断区域 Cutting area 1600×510mm 压板工作面尺寸（长×宽） Dimension of work table of pressing board(L×W) 510×510mm 主电机功率 Power of main motor 2.2KW 副电机功率 Power of accessory motor 0.37KW
