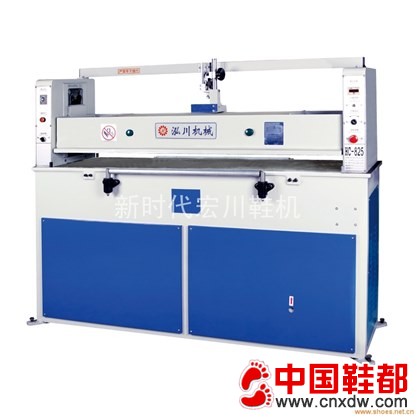

进店逛逛plane type cutting machine
1.本机适用于皮革、塑胶、帆布、尼龙、纸板、真空成型、复合材料、 泡棉、包装及各种合成材料一层或数层的成型下料。
2.压板上下运动的导向靠两侧导轨,导向效果较好,保证上下工作面的平行度。
3.采用双手操作开关，保证操作员工的安全性。
4.机器配有工作拖板，便于操作工取出刀模和安全。
5.主轴和轴座间安装有自润滑轴承不用加油，没有磨损。
6.适用于宽幅，多层材料的下料。
1.This machine is suitable for leather, plastic cement, canvas, nylon, paper board, vacuum forming, composite materials, foam, packaging, and various kinds of synthetic materials one layer or layers of molding.
2.linking piece of up and down movement direction on both sides of the guide, the guide effect is better, guarantee and parallel working face.
3.Use both hands switch operation, to ensure the safety of operation staff.
4.The machine is equipped with work over board, facilitate operators take knife mold and safety.
5.The main shaft and shaft are installed between the self-lubricating bearing don't come on, don't wear.
6.Suitable for wide, layers of material.
| 最大冲裁力 | 250KN |
| 冲裁速度 | 0.10m/s |
| 行程调节范围 | 0-100mm |
| 上下压板间距离 | 50-150mm |
| 上压板尺寸 | 1600x460mm |
| 下工作台面尺寸 | 1600x520mm |
| 电机功率 | 3.0kw |
| 外形尺寸 | 1890x520x1500mm |
| 整机重量 | 1500kg |
