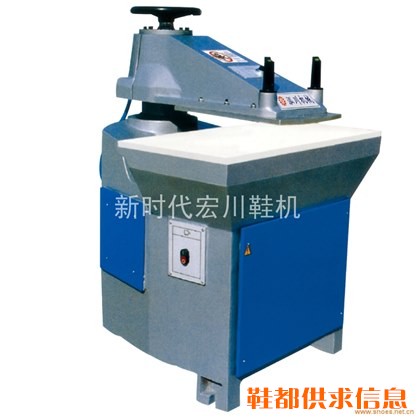

进店逛逛Rocker cutting machine
1.本机适用于皮革、塑料、布类、皮包、玩具、帽子、发泡片、
地板材料、软木片等各种需要用刀模裁断的裁剪物。
2.摆臂自如摆动，操作视线极佳，特别适用于对真皮料的下料裁断。
3.采用双手操作开关，保证操作员工的安全性。
4.立柱配有自润滑系统，不需人工加油，提高了机器的使用寿命。
5.液压系统在封闭的环境下运转，在一般的工作环境下可以工作。
1.This machine is suitable for cutting materials like leather, plastic, cloth, leather bags, toys, hats, spongy floss pieces, floor materials, soft wood pieces and materials meeded sword die cutting out.
2.Swing arm swing freely, the operation line of sight, is especially applicable to the material cutting of leather material.
3.Use both hands switch operation, to ensure the safety of operation staff.
4.Pillar with self lubricating system, do not need to) come on, improve the service life of the machine.
5.Hydraulic system running in a closed environment, can work under the general working environment.
| 最大冲裁力 | 200KN | 250KN | 120KN |
| 冲裁速度 | 0.06m/s | ||
| 行程调节范围 | 0-75mm | 0-60mm | |
| 上下压板间距离 | 65-150mm | 60-120mm | |
| 上摆臂尺寸 | 350x500mm | 450x500mm | 340x410mm |
| 下工作台面尺寸 | 1000x500mm | 900x410mm | |
| 电机功率 | 1.5kw | 0.75kw | |
| 外形尺寸 | 1000x1050x1480mm | 900x950x1400mm | |
| 整机重量 | 1000kg | 1050kg | 800kg |
