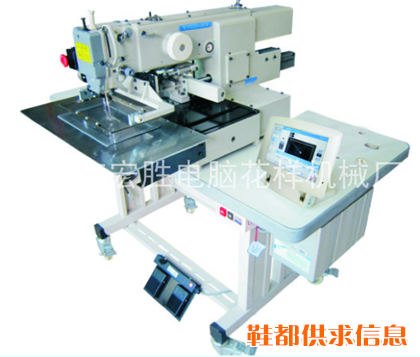

1、本机器采用高清彩色液晶中/英文显示屏操作盘,屏幕内可显示缝制图案,具有智能语音播报功能;
2、 本机装备了新型的自动抬压脚机构,当面料的厚度改变时,中压脚可根据面料厚度,自行调节高度保证缝制线迹的连续性和美观。
3、 主要适用于各种非平面面料的产品缝制。
1, The machine is equipped with new automatic presser foot lift bodies, when the change of the thickness of the fabric presser foot according to the thickness of the fabric, self-adjust the height to ensure the continuity and appearance of the sewing stitch.
2, Applicable to a variety of non-planar fabric products sewn.
性能指标:
缝制范围Sewing range | 200*100mm 250*160mm 300*200mm |
操作方式Mode of operation | 液晶中英文触摸屏 LCD touch screen in Chinese |
最高缝制速度Max sewing speed | 2500 rpm |
针距范围Needle range | 0.1mm-12.7mm |
储存方式Storage | USB |
机针Needle | DP*17# 19# |
梭床Hook | 两倍全旋梭 Double hook |
压脚形式Press foot system | 气动 Pneumatic |
马达Motor | 直驱伺服750W Direct-drive servo motor 750W |
电源Power supply | 交流220V alternating current 220V |
