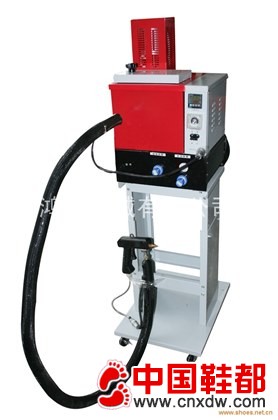

HX-QB102热熔胶涂布机带胶枪THERMAL PLASTIC COATER (SINGLING)
A. 可广泛用于制鞋业、木工业、纺织业、玩具业、皮革、电子、电器等各种不同制造业上。
B. 适用于：1.喷胶2.点胶3.抹胶4.填充胶等多种用途、多种规格之枪体喷胶头，可选择更换。
C. 热熔胶是一种不含任何溶剂，为100%固体化热塑性物质。可达到防治最严格的空气污染的要求，亦完全没有火灾及爆炸等危险。
D. 本机采用两段式过滤设备，减少喷嘴堵塞现象。
E. 胶桶采用特殊构造，能迅速将固体热熔胶熔成液体。
F. 本机种之设计适用各种型态之热熔胶。
G. 喷胶速度快、力道强劲、稳定均匀。
H. 涂布范围容易控制操作。
A. It can be applied to various industries, such as shoes manufacturing industry packing industry wooden industry, spinning industry toy industry, leather, sanitation accessories, electrics, electricity , and so on.
B. It applies to:1 spraying glue 2 dot gluing 3wiping glue 4 filling glue and other gun spraying glue head with many usages and many specifications, selectable and changeable
C. Fusing glue is 100% solid hot plastic materials without any solvent Reach the meet of the strictest air pollution prevention, there is no danger of fire and explosion.
D. This machine employs two-section filtrater, which will reduce the blockage of the spraying mouth.
E. This glue pot employs special construction, which can melt the solid fusing glue into liquid.
F. The design of this machine applies to the fusing glue of any type and of any shape.
G. The speed of spraying glue is high, the strength is great, and the solidity is even
H. The scope of the coating can be easily controlled and operated.
型 号MODEL | HX-QB102 |
机械尺寸 DIMENSIONS | 108X31X158cm |
包装尺寸PACKING SIZE | 115X40x170cm |
净 重N.W. | 40kg |
毛重G.W. | 50kg |
电机功率W | 90w |
电热功率W | 2.4kw |
电源SOUTCE | 220v |
熔胶速度SPEED OF FUSING GLUE | 7kgHour |
使用粘度ADHESIVE FORCE USED | 1000~200000cps |
操作温度OPERATING TEMPERATURE | MAX.220C |
胶桶容量VOLUME OF THE GLUEPOT | 3kg |
注意事项：
1、请使用质量较好的胶条，并保持胶条表面干净，防止杂质堵住枪嘴。
2、胶枪在不用时请直立于桌上，不要放倒，否则会引起倒胶，以及胶条变粗卡住胶枪入口，无法打胶等质量问题。
3、胶枪中的胶条没有用完时，请 不要把胶条从胶枪中拔出。
4、胶枪连续加热30分钟不用，建议切断电源。
