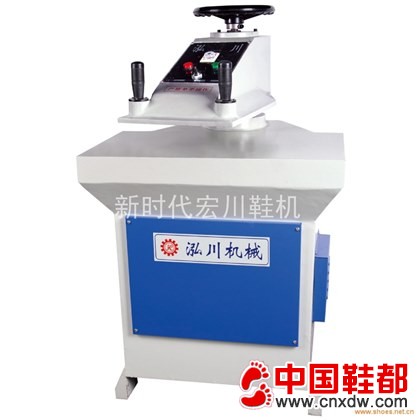

Rocker cutting machine
1.本机适用于使用小型刀模对票夹组件、手机套、小型玩具组件、装饰件、 皮包附件等非金属材料的冲裁下料。
2.摆臂摆动自如，操作选料方便。
3.采用双手操作开关，保证使用员工的安全性。
4.摆臂的位置高低由机器上端的手轮调节，冲裁行程由时间计时器调整， 这样可以轻易获得最佳裁切位置，提高工作效率，延长刀模和垫板的使 用寿命。
1.This machine is suitable for the use of small die cutter to holder components, cell phone sets, small toys, decoration, leather accessories, and other non-metallic materials of cutting.
2.Swing arm swing freely, the operation is convenient.
3.Use both hands switch operation and guarantee the safety of operators.
4.The height of the swing arm adjusted by hand wheel at the top of the machine, blanking travel adjustment by the timer, it can easily get the best cutting position, improve work efficiency, prolong the service life of die cutter and pad.
| 最大冲裁力 | 120KN |
| 冲裁速度 | 0.085m/s |
| 行程调节范围 | 5-45mm |
| 上下压板间距离 | 45-90mm |
| 上摆臂尺寸 | 350x410mm |
| 下工作台面尺寸 | 750x420mm |
| 电机功率 | 1.5kw |
| 外形尺寸 | 850x850x1400mm |
| 整机重量 | 550kg |
