JG-8811

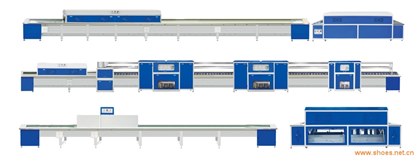

近红外线LEGO系统成型机二层流水线
LOW -VOLUME VACUUM DRYING ConVEYOR SYSTEM FORMING
特点:
A、红外线灯管
采用进口NIR低炫光渗透近外线灯管，升温快捷、温度稳定。
B、恒温系统
1)采用SCR独立温控系统.温度恒定精准,使贴底效果级佳。
2)温度系统(快速升温）：温度随机开启约40S-60S可速达到设定值温度,节省耗电量。
C、烘箱温度
可依据不同材料进行设定，使生产更方便,更能达到制鞋设计与工艺要求。
D、优点
1)本流水线烘箱配合作业流程,可以任意移动调整位罝。
2)设计简单,安装容易,使用方便。
3)双层设计采用隔离方式,配合贴底作业处理,上胶、组合等流程设计,提高生产效率,节省人力及增加产量。
E、节省空间
鞋底、鞋面直接通过近红外线渗透光照射.使烘箱长度大幅度缩短。
F、输送带系统
1)输送速度可调整0~1.3m/min。鞋底，鞋面采用同步输送，并采用专利可调距鞋楦架， 适应不同鞋型。
2)生产线长度可配合工厂规划量身定做，贴底段配罟快速输送带，使粘贴效果更牢固。
Features
A.Infra-red Lamp
Infrared light tube,the adoption adit NIRis low to dazzle the onfarared light of the light osmosis tube,heat fast.temperature tabilization.
B.The accurate constant temperature system
1)The adoption SCR temperature control system,the temperature is certainly prcciscrsticking the bed effect very good;
2)The temperature systcm(hcat quickly);the temperature open random and can attain the initial value temperature quickly about the 40Ss Ss-60scs,saving to consume the battery, quantisly.
C.The oven temperature
Can the basis different material progerss cnactmcnt.make pruduce more convenicnt.even can attain to make the shoe design and crafes request.
D.Advantage
1)This flowing water line oven fit operation flow proccss.can travel to regulate the placc arbitarily：
2)The design is in brief，set easily,use (he convenience,
3)A lamella design the adoption insulates the way,matching with to stick the bed operation disposal,last glucbine etc.flow proccss dcsign.the exaltation produce effciency.economical manpower and raise the output.
E.Economical spacc
The shoe sole shoe top projects light upon through the near line couside line osmosis light dircctly,making the oven length significant to shorten.
F.The belt conveyer system
1)Transport the adjustable 0-1.3M/MIN of speed,the shoe sole shoe top adoption transports synchronously,and adopt the adjustable pocking block.adapting the different shoe shape.
2)The production line length can match with the programming of works to tailor,slicking the segment of bed to prepare the fast belt conveyer,making glue to slick the effect firmer.
近红外线灯
1)超长使用寿命。
2)极短的升温时间和冷却时间，
3)极高的热效率。
4)极高密度的输出功率。
5)非常紧凑的发热体尺寸。
6)完美匹配的红外线光谱。
7)非同一般的机械强度和防水性能。
8)最高红外线渗透率的石英玻璃制造
9)无需任何媒介，直接通过近红外线渗透光照射到加工物体，产生分子碰撞发热。
10)节能和环保。
Characteristics of near-infrared rediation
1)long service life.
2)A very short heating time and cooling time.
3)High thermal efficiency.
4)High output power density,
5)A very compact size of the heating body.
6)The infrared spectra of a perfect match.
7)The extraordinary mechanical strength and water resistance.
8)The highest penetration of infra-red quartz glass.
9)Without any media.direct penetration through the near-infrared light reach the processing objccte.resulting in molecular collision fever.
10)Energy-saving and environmental protection.
