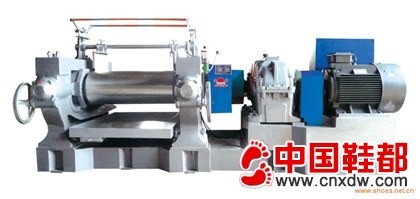

开放式密炼机
OPEN MIXING MILL
技术参数/TECHNICAL DATA
| 型号(MODEL) | Φ22 | Φ18 | Φ16 | Φ14 | Φ12 | Φ9 |
| 辊径X长度（The roll diameter x length) | 550x1530 | 450x1200 | 400x1000 | 360x920 | 310x920 | 230x635 |
| 主电机（The main motor) | 90kw6PAC | 55kw 6PAC | 45kw 6PAC | 30kw 6PAC | 22kw 6PAC | 15kw 6PAC |
| 前辊线速（Before the roller line speed) | 27.65 | 23.2 | 20.6 | 19 | 14.45 | 13.5 |
| 前辊转速（Before the roller speed) | 16 | 16.5 | 16.5 | 16.5 | 17 | 18.7 |
| 前后辊速比（Roller speed ratio before and after) | 0.1:01.3 | 0.1:01.3 | 0.1:01.3 | 0.1:01.3 | 0.1:01.3 | 0.1:01.1 |
| 减速机速比（Reducer ratio) | 47.5 | 47.1 | 47 | 46.8 | 45 | 47.6 |
| 机械重量（Machine weight) | 1750kg | 11000kg | 7500kg | 5100kg | 2700kg | 2300kg |
| 外形尺寸（Overall dimensions) | 5365x1946x2193 | 4558x1665x2015 | 4001x1500x1870 | 3700x1425x1870 | 3337x1130x1415 | 2528x1053x1235 |
