橡胶鞋材专用模温机

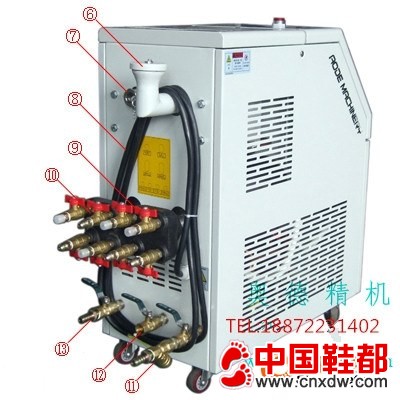

高温油温机 High-temperature oil temperature machine 特 点: Features 管路防爆装置 Explosion-proof equipment for pipelines 吹气回油功能 Air blowing and return oil return function 回油温度显示表 Thermometer for return oil 开机自动排气功能 Automatic air-exhausting function after startup 加热功率切换功能 Switchover of heating power 负压系统运转(选购)    Negative-pressure system (optional) RS485通讯功能，实现自动化管理(选购) RS485 communication function for automated management (optional) 即时冷却关机功能(选购) Instant cooling return oil shut-down function 隔离式电器控制箱，延长电器使用年限 Isolated electric box for longer services lives of electric appliances 热油BY-PASS泄压回路 BY-PASS pressure release loop for hot oil 多点温度控制机组可订作 Customizable multi-point temperature control unit 油泵马力和加热功率可订作 Customizable horsepower and heating power of oil pump 电器采用OMRON. FUJI. TE. LG. Brands OMRON, FUJI, TE and LG for electric appliances 温度控制范围: 进水温+25℃→300℃ Range of temperature control: +25℃→300℃for incoming water 304不锈钢一体管路,减少管阻及锈垢 304 stainless steel integrated pipelines for less pipe resistance and rust 控制方式: 采用进口微电脑或(选购)PLC控制 Control mode: imported microcomputer or PLC (optional) 安全保护完善,故障显示, 维修.保养无需专业人员 Perfect safety protection, fault display, easy repair and maintenance even free of professionals 规格

机型	Model	单位Unit	AEOT-10	AEOT-20	AEOT-40
温控范围	Controlrange	℃	300℃	300℃	300℃
温控精度	Temp.controlaccuracy	℃	PID±1℃
电源	Power		AC3∮380V 50HZ3P+E（5M）
传热媒体	Heattransfermedium		导热油HEATTRANSFERFLUID
冷却方式	Coolingmethod		间接冷却INDIRECTCOOLING
加热能量	Heatingcapacity	KW	12/8	12/24/27	24/36
泵浦马力	Pumppower	HP	1	2	4
量大泵浦流量	Max.Pumpfolw	L/MIN	70	95	200
冷却水压力	Coolingwaterpressure	KG/CM2	4	3	5
最大电力消耗	Powersupply	KW
储油量	Expansion tank capacity		35	35	35
警报功能	alertfunction		缺相/缺水/超温/过载
冷却水配管	Coolingwaterpipe	INCH	1/2	1/2	1/2
循环水配管	Circulationwaterpipe	INCH	3/8*4	3/8*4	(3/8*4)*2
外型尺寸	LxWxH	MM	1100*500*900	1100*500*900	1400*550*1200
重量	Weight	KG	110	120	150
