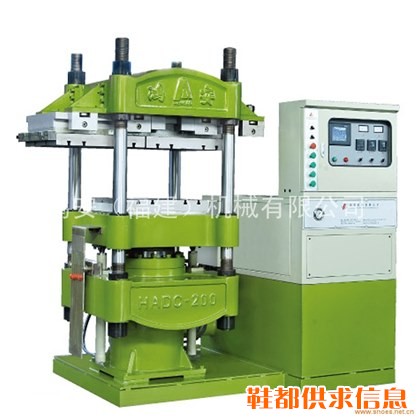

密胺餐具双色成型机
melamine tableware moulding machine with 2 colors
特点:
A.本机可分两段式进退模,速度可调节.且设有选择 开关选择是否推出模;
B.滑板采用球墨铸铁热处理,硬度高,经研磨,精密 度高、耐磨擦、耐冲击;
C.液压配件采用进口国际知名品牌,选配PLC电脑自 动控制系统.操作简单.且可自动操作;
D.机台动作速度快、平稳,噪音小;
E.适用于美耐皿双色餐具及麻将牌。
CHARACTERISTIC:
A.Designing 2-section of dies with 2 colors . divided into 2 steps for operating, with adjustable speed;
B.Using bail mill cast iron with heat treatment for the slide plates, featuring to its high-hardness. high-precision, and resistance to friction and impact;
C.Equipped with world famous brands for the hydraulic parts, PLC automatic operation system;
D.Speedy, steady running with little noise;
E.Suitable for melamine tableware with 2 colors.
| 型号/ Model | HACJ2-200T | HACJ2-300T |
| 压力 / Pressure | 200T | 300T |
| 缸径 / Dia. Of cylinder | 360mm | 450mm |
| 层数 / No. of layer | 1 层 / Layer | 1 层 / Layer |
| 工作台尺寸 / Size of heating plate | 600 x 600 mm | 700 x 650 mm |
| 行程/ Stroke | 400mm | 400mm |
| 电热功率 / Heating power | 10.8kw | 13.5kw |
| 电机功率/ Motor power | 5.5kw | 7.5kw |
| 外形尺寸 / Machine dimension | 2530 x 1500x2150 mm | 2600 x 1500 x 2250 mm |
| 重量 / Weight | 6000kgs | 7500kgs |
另有400T-500T压力可供选用
NOTES: 400tons-500tons could be made.
