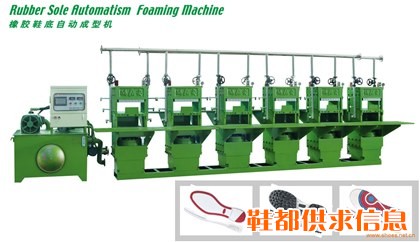

橡胶鞋底自动成型机
Rubber Sole Momatism Foaming Machine

生产方案：
独特的机身结构设计，不断裂、不变形的橡胶鞋底成型机，让你 在最短时间内拥有最佳的生产性能.
控制系统：
液压控制系统，采用进口知名品牌.选用PC和PLC控制系统. 液压集中控制，置有冷却器、过滤器.拉长液压件寿命。 机台动怍速度快、平稳，静音、运作圆顺. 生产全程，设定为半.全自动连续式动作.各动作皆能独立调整， 互不牵制，可靠性高。
主要生产：
单色及多色橡胶鞋底，导电橡胶、汽车零件及各种橡胶成品成型.

SUITABLE FOR: rubber sole with single or multi colors, conductive rubber, automobile parts, and other rubber finished products.
ConTROL SYSTEM: adopting imported brand world famous, PC & PLC as the hydraulic controlling system;
Centralized control with cooler, filter to longer the parts' service life;
With speedy movement, smooth, mute, and coordinate running; Semi-automatic, Full-automatic continuous action setting during whole production, independent adjustment without interference, to feature in high reliability.
PRODUCTION FEATURE: special body mechanism design, with non-fracture & non-deformation body machine, to make you own the best production in short time.

技术参数/TECHNICAL PARAMETERS

型号 Model	HAXJ-1125	机械東fii WEIGHT (TONS)	12
站数 Number Of Work Stations	6	加热方式 HEAT THE WAY (GROW)	电、蒸汽、油 Electricity and steam, oil
闭埃力 MOULD CLAMPING FORCE (TONS)	150	容楼空间 MOULD SPACE (LXW MM)	450x500
层 数 LAYER NUMBER (STATIONS)	2	间距 DAYLIGHT BETWEEN PLATE (MM)	180
马力 HORSEPOWER (HP)	20	机械尺寸 MACHINE DIMENSION (M)	1.6x1.6x8.5

备注：电加热导热油炉属于加装设备，可根据客户需求另外配罝。
Notes: The electric heating oil furnace belongs to the heat equipment. It can add configuration according to customer needs.
